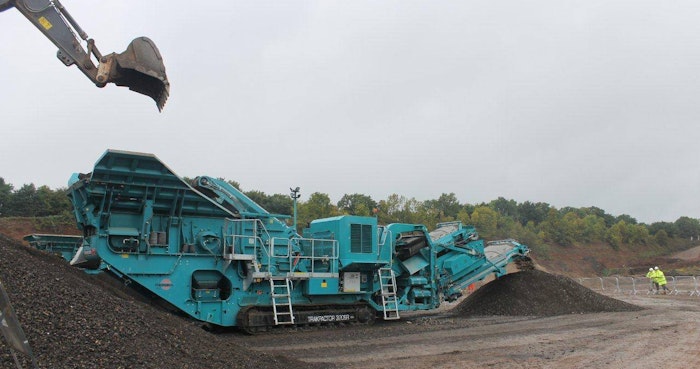

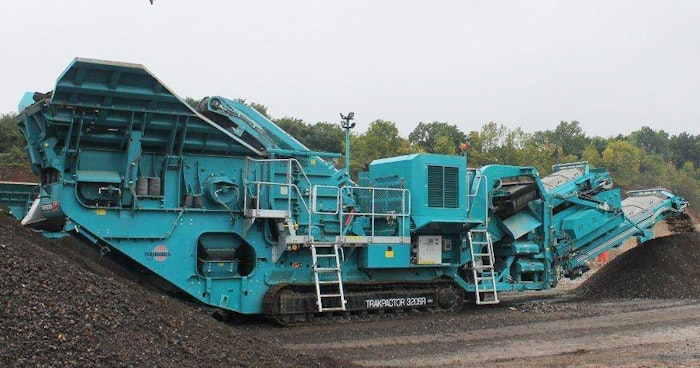

Trakpactor 320SR
![](https://powerscreen-sales.imgix.net/21802090-a76b-4aa4-bd2d-5351d35383bc/Trakpactor-320SR-20.jpg?auto=compress%2Cformat&fit=min&fm=jpg&q=80&rect=446%2C390%2C504%2C264&w=700&s=e200c3423f896ed5ee173cb62581961e)
![Trakpactor 320sr Transport Position](https://powerscreen-sales.imgix.net/nullnullnullbc9279e8-a5a6-4590-8bd5-40334cd6ed8a/Trakpactor-320SR-Transport-Position.jpg?auto=compress%2Cformat&fit=min&fm=jpg&q=80&rect=27%2C0%2C425%2C320&s=b1c4e2e3dd311c9d4493e1d78ff9d539)
Output Potential: 320tph
Transport Dimensions: Width: 8'5" Length: 48'6" Height: 11'4"
Working Dimensions: Width: 18'2" with bypass conveyor Length: 47'1" Height: 12'8"
Weight: 80,601lbs
- Output potential up to 320 tph (353 US tph)
- Double deck grizzly feeder with under screen
- Load management system to control feeder speed
- Suitable for a variety of feed materials
- Proven Terex Impact Crusher with hydraulic overload protection, 4 bar rotor & twin apron design
- Crusher speed variation through user friendly PLC control system
- Fully independent under crusher vibrating pan feeder (option)
- Modular conveyor with raise/lower facility to aid clearance of rebar
- Powerful overband magnet (optional)
- Designed to give optimum performance in both quarry, demolition & mining applications
- Latest generation powerunits that meet EU Stage IIIB / US Tier 4i & EU Stage IIIA / US Tier 3 emissions legislation
- Hydraulically operated clutch & highly fuel efficient direct drive system
- Independent hydraulic prescreen for increased fines removal before the chamber (option)
- SR configuration optional with 2 deck 3.3m x 1.5m (11’ x 5’) post screen with detachable 2 deck post screen and fines conveyor
