Horizon 6203 & Horizon 6203R

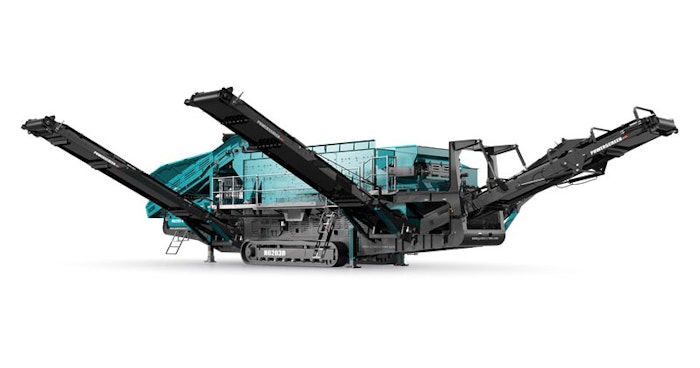

H6203r Rendered Image New
Horizon 6203 Brochure
Rent Now

Output Potential: 800tph

Transport Dimensions: Width: 10'6" Length: 64'3" Height: 11'10"

Working Dimensions: Width: 53'3" Length: 61'10" Height: 15'9"

Weight: 102,956lbs

Output Potential: 800tph

Transport Dimensions: Width: 10'6" Length: 62"4" Height: 11'10"

Working Dimensions: Width: 53'4 Length: 69'11" Height: 15'5"

Weight: 99,208lbs
Powerscreen Horizon Range The Powerscreen Horizon Range of horizontal screens are ideal for handling high volumes of sticky materials and for the exact, fine sizing demanded in many construction contracts. The Horizon 6203 & Horizon 6203R offer excellent capacity output; up to 800tph. Effectiveness The adjustable elliptical throw combines linear and circular amplitude producing an aggressive screening action. Powerscreen® Horizon Range products are especially effective for scalping after a primary impact or jaw crusher. They have really outstanding performance when screening out specific small sizes. Ideally suited to applications such as natural and crushed aggregate, coal, iron ore, recycled concrete and asphalt.
  • Output potential up to 800 tph (882 US tph)
  • High capacity variable speed belt feeder
  • Oil bath screenbox bearing lubrication
  • Screen walkway & access ladder
  • Hydraulic folding stockpiling conveyors
  • Engine protection shutdown system
  • Heavy duty triple shaft screenbox with adjustable stroke, angle & speed
  • Elliptical throw adjustable up to 19mm (3/4")
  • Diesel hydraulic power unit
  • Heavy duty, low ground pressure tracks
  • Direct feed hopper with impact bars & rollers (R version only)
  • Mid-over's product tail conveyor (R version only)
  • Oversize product side conveyor (R version only)
  • Full walkway access on three sides of screen
  • Radio controlled tracking
  • Hybrid (additional electric hydraulic drive) Horizon 6203R only)
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Variable speed incline apron feeder
  • Auto lubrication system
  • Wear resistant or mild steel punch plate screens
  • Hinged trap doors offering blending options between decks
  • Oversize product recirculating swivel conveyor, used to transfer return product from recirculating crusher back to feeder (Horizon 6203R only)
