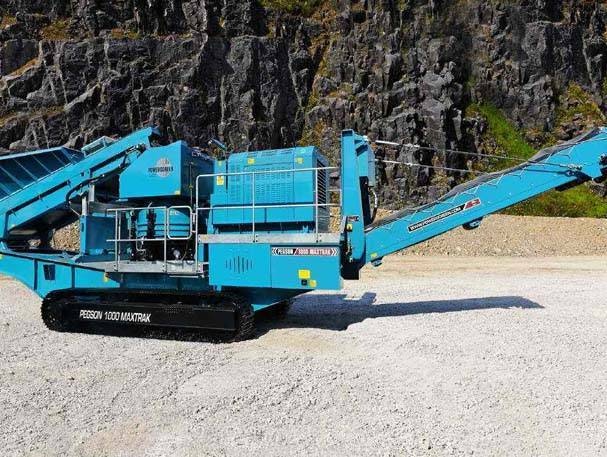

Powerscreen 1000 Maxtrak – 1000SR
Weight (Est) 31,800kgs (70,100lbs)
Transport Width 2.8m (9'2")
Transport Length 14.5m (47'7")
Transport Height 3.45m (11'4")
Working Width 2.8m (9'2")
Working Length 14.5m (47'7")
Working Height 4.1m (13'5")
Working Height 4.36m (14'4")
Weight (Est): 38,500kgs (84,900lbs)
Transport Width: 3.1m (10'2")/td>
Transport Length: 16.9m (55’ 5”)
Transport Height: 3.45m (11'4")
Working Width: 3.1m (10'2")
Working Length: 16.9m (55’ 5”)
Working Height: 4.85m (15’ 11”)
Working Height: 5.47m (17'11")
- Output Potential: up to 230 tph (253 US tph)
- Renowned Automax® crusher technology
- Accepts clean all in feed
- Excellent product shape
- High reduction ratio
- Cone feed box level control to maintain choke feeding
- Hydraulic crusher setting
- Cone overload protection
- Heavy duty chassis and track frame
- Metal detector
- Dust suppression system
- Economical to operate with a highly fuel efficient direct drive system
- Combines crushing and screening capabilities on a single plant (1000SR)
- Suitable for re-circulating oversized material (1000SR)
