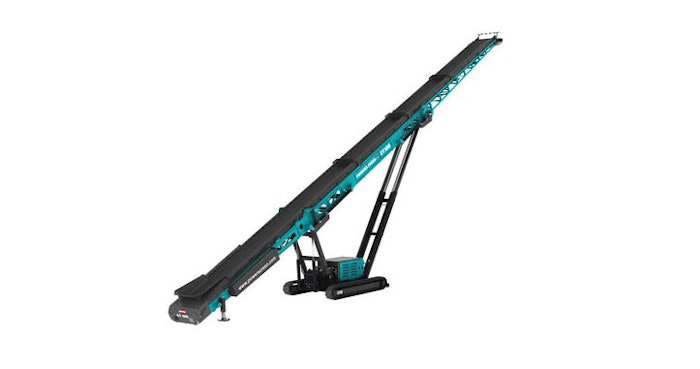

CT100

Weight: 24,000kgs (52,910lbs)

Transport width: 2.84m (9'4")

Transport length: 19.5m (63' 11")*

Transport height: 3m (9' 9")

Containerised shipping: 40' X 9'6" High cube container

Conveyor length: 30m (98' 5")
Belt width: 1050mm (41")
Discharge height: 10.5m (34' 5") @18°
Max discharge height: 14.3m (46' 11") @28°
Production capacity: Up to 600tph (661 US tph)

  • Self powered diesel hydraulic tracked conveyor
  • Steel lined feedboot as standard providing extended wear life.
  • Full hydraulic set-up, no crane required
  • Containerised, track in/track out
  • Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer
  • Dual speed tracks for quick and controlled deployment
  • Fully protected power unit with easy access for service and maintenance
  • Rubber feedboot liners
  • Feedboot extensions
  • Impact rollers at feedboot
  • High spec discharge conveyor head drum scraper
  • Chevron belt
  • High spec discharge conveyor head drum scraper
  • Head drum guards
  • Under guards
  • Dust covers
  • Dust suppression water spray at head drum
  • Conveyor drive - direct electric
  • Full length skirting
  • Pull cord emergency stop along length of conveyor
