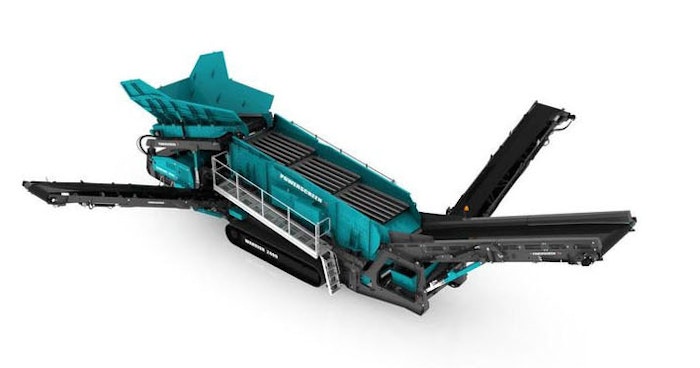

Warrior 2400


Certified: yes
Weight (Est): 43,000kg (94,779lbs)
Transport Width: 3m (9'10")
Transport Length: 17.2m (56'5")
Transport Height: 3.6m (11'10")
Working Width: 9.6m (31'5")
Working Length: 18.3m (60'2")
Working Height: 4.9m (16')
Screen Unit: 6.1m 1.93m (20' x 6.3')
Weight (Est): 46,200kg (101,853lbs)
Transport Width: 3m (9'10")
Transport Length: 17.3m (56'10")
Transport Height: 3.6m (11'10")
Working Width: 15.3m (50'4")
Working Length: 18.5m (60'8")
Working Height: 5.2m (17'1")
Screen Unit: 6.1m 1.93m (20' x 6.3')
- Output potential up to 800 tph (881 US tph)
- Heavy duty, incline belt feeder with hydraulic folding hopper sides
- Hydraulic load sensing on under screen conveyor circuit & fines circuit
- Aggressive heavy duty triple shaft screen, with adjustable stroke angle
- Jack up screen facility to aid mesh changes
- Screen walkway and access steps
- Screen media interchangeable with H range products
- Jack up legs for screen levelling
- Hydraulic folding conveyors with excellent stockpiling capacity
- Heavy duty triple shaft screen box with adjustable frequency, timing & amplitude
