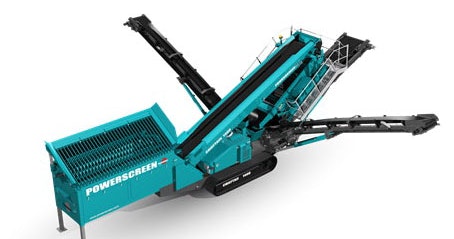

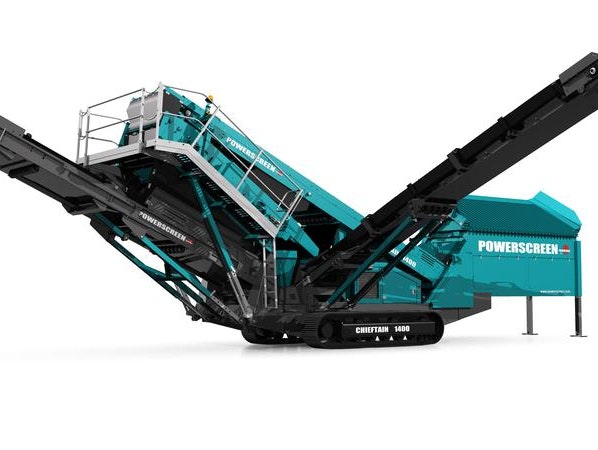

Chieftain 1400

Weight: 24,900kgs (54,895lbs)

Transport width: 2.75m (9')

Transport length: 15.4m (50'6")

Transport height: 3.2m (10'6")

Working width: 16.2m (53'2")

Working length: 16.4m (53'9")

Working height: 4.8m (15'7")

Screenunit: 3.3m x 1.53m (11' x 5')

Weight: 22,000kgs (48,502lbs)

Transport width: 2.75m (9')

Transport length: 16.95m (55'7")

Transport height: 3.9m (12'8")

Working width: 16.2m (53'2")

Working length: 17.9m (58'9")

Working height: 5.33m (17'6")

Screenunit: 3.3m x 1.5m (11' x 5')

  • Output potential up to 400 tph (441 US tph)
  • Radio controlled tipping grid
  • Integrated high capacity variable speed belt feeder
  • Grease filled patented 4 bearing, 2 deck screen box
  • Hydraulic screen angle adjustment
  • Screen walkway & access ladder
  • Hydraulic folding conveyors
  • Engine protection shutdown system
  • Wheel or track mobile
  • Double deck vibrating grizzly
  • Radio controlled tracks
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Quick release screen wedge tensioning
  • Anti roll-back
  • Auto lubrication system
  • Hydraulic screen tensioning (Bottom Deck)
