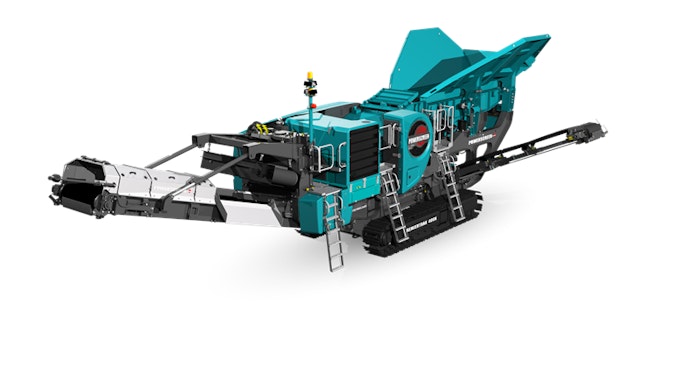

Premiertrak 400X & R400X

Rent Now

Certified: yes

Weight (Est): (Tier 3) 46,300kgs (102,274lbs) (Tier 4F) 46,500kg (102,514lbs)

Transport width: 2.8m (9'2")

Transport length: 15.02m (49'3")

Transport height: 3.4m (11'2")

Working width: 4.33m (14'2") (with side conveyor)

Working length: 14.66m (48'1")

Working height: 4.13m (13'6")

  • Output Potential: up to 400tph (441 US tph)*
  • High output and excellent reduction capability
  • Wear resistant hyraulic folding feed hopper with hydraulic wedge fixing system
  • Excellent under crusher access for removal of wire with hydraulic raise lower product conveyor
  • Stepped self-cleaning grizzly feeder with under feeder screen option
  • Deep fines chute to reduce material blockages
  • Improved bypass chute to increase material flow
  • Aggressive crushing action with high swing jaw encouraging material entry into crushing chamber
  • Hydraulic crusher setting adjustment
  • Improved manganese liner retention, protects jaw supports on both swing & fixed jaws
  • Economical to operate with low fuel consumption due to highly efficient direct drive system
  • Angle adjustable product conveyor
  • Easy access power unit canopy
  • PLC control system with auto start facility
  • Remote control via umbilical
  • Dust suppression system
  • Easily set up
  • Fitted with Powerscreen Pulse Telematics system
  • 650mm wide bypass conveyor
  • Fully inclined catwalks
  • Patented hydraulic deflector plate under crusher
  • Side conveyor /extended side conveyor
  • Single pole/twin pole magnet
  • Radio remote control
  • Belt weigher
  • Electric refuelling pump
  • Hydraulically driven water pump
  • Wire mesh for underscreen
  • Super tooth or multi tooth jaw plates
  • Extended hopper
  • Post-screen available (will add est 6 tonnes to a machine weight)
  • Unblock motor
  • Extended main conveyor
  • Over crusher level sensor
  • Patented hydraulic crusher overload system, ideal for applications with un-crushable material in feed, 200mm3.
  • Pre-screen available
