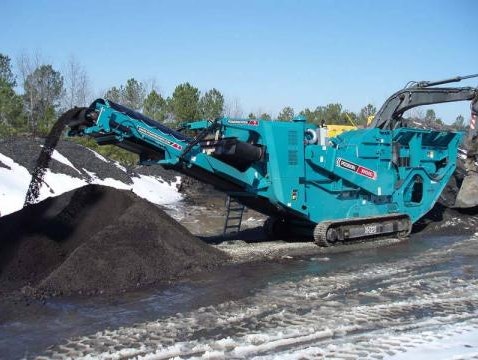

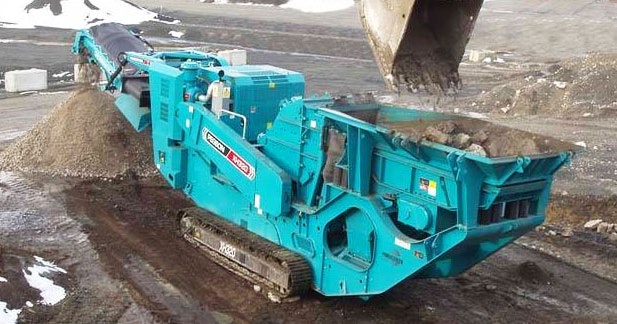

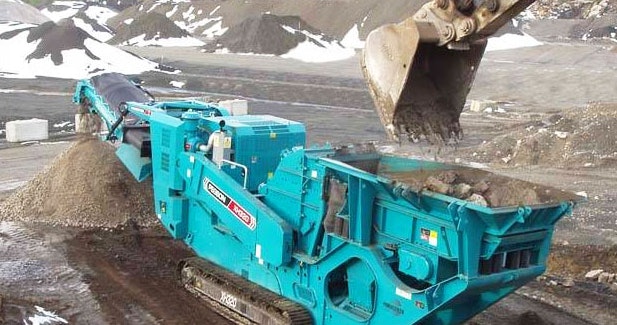

Powerscreen XH320 – XH320SR

Weight (Est): 32,400kgs (71,429lbs)

Transport Width: 2.56m (8'5")

Transport Length: 14.45m (47'5")

Transport Height: 3.42m (11'2")

Working Width: 4.22m (13'8")

Working Length: 14.22m (46'7")

Working Height: 3.42m (11'2")


  • Output Potential: up to 320 tph (352 US tph)
  • Suitable for a variety of feed materials including recycling, demolition and quarry applications
  • Bolt in cartridge grizzly – 42mm nominal spacing
  • Load management system to control feeder speed
  • Crusher chamber: Hydraulic overload protection and adjustment. Patent Publication Numbers: GB 2 455 203; US 2009/0140089; DE 10 2008 044 195
  • 4 bar rotor and twin apron design
  • Crusher speed variation through user friendly PLC control system
  • Independent under crusher vibrating pan feeder as standard
  • Modular conveyor with raise/lower facility to aid clearance of rebar
  • Economical to operate with a highly fuel efficient direct drive system
  • Double deck 11′ x 5′ post screen (XH320SR)
  • Full and half size chrome, martenistic, austenitic, and ceramic blow bars
  • Grizzly cartridges, nominal spacing 30 or 60mm
  • Punch plate options 30, 45 or 60mm
  • Blanking plates/mats for grizzly
  • Underscreen wiremesh 10, 20, 30, 40, or 50mm
  • Single pole/twin pole magnet
  • Belt scale
  • Side dirt conveyor
  • Refuelling pump
  • Hydraulic water pump
  • Radio remote control
  • Dust hood on product conveyor
