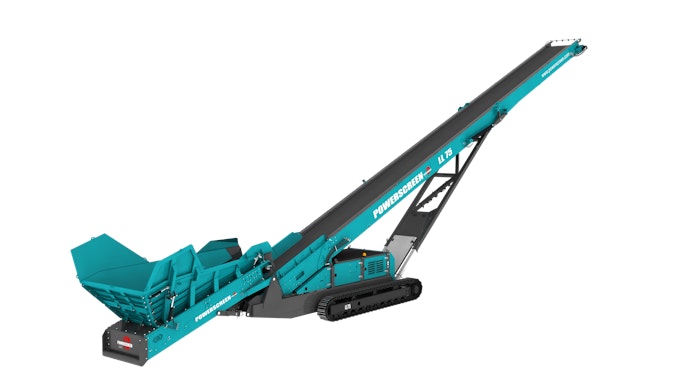

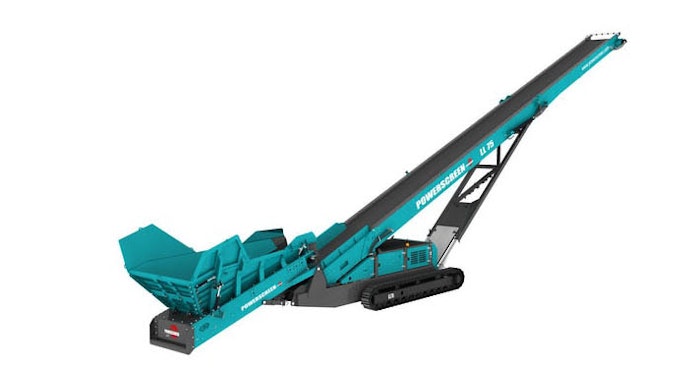

LL75

Rent Now

Certified: yes

Weight: 24,000kg (52,910lbs)

Transport width: 2.75m (9')

Transport length: 19.6m (64' 4")

Transport height: 3m (10')

Containerised shipping: 40' X 9'6" 2x High cube containers

Conveyor length:  22.6m (74' 2")
Belt width: 1200mm (42")
Discharge height: 8m (26' 3") @18°
Max discharge height: 9.8m (32' 2") @24°
Production capacity: Up to 500tph (551 US tph)

  • Low feeder means easy to load directly from wheel loader or excavator
  • Self powered diesel hydraulic tracked feeder conveyor can be used alone or in conjunction with other Powerscreen mobile crushing and screening equipment
  • Containerised shipping means low cost transport
  • Canvas dust covers on discharge conveyor
  • Twin drive discharge conveyor
  • Twin drive feed conveyor
  • Full length side skirting along discharge conveyor
  • High spec discharge conveyor head drum scraper
  • Belt weigher
  • Overband magnet at feedboot of discharge conveyor
  • Radio remote to start / stop feeder, raise / lower discharge conveyor
  • Pull cord E-stop running length of discharge conveyor
  • Manual adjusting jacking legs at tail side of feeder to adjust tail height
