Transport Dimensions: Width: 3m (9'10")Length: 16.02m (52'7") Height: 3.4m (11'2")
Working Dimensions: Width:13.6m (44'7") Length:16.3m (53'5") Height: 4.5m (14'9")
Screen box: 4.88m x 1.5m (16' x 5')
Weight (Est): 34,800kg (76,720lbs)

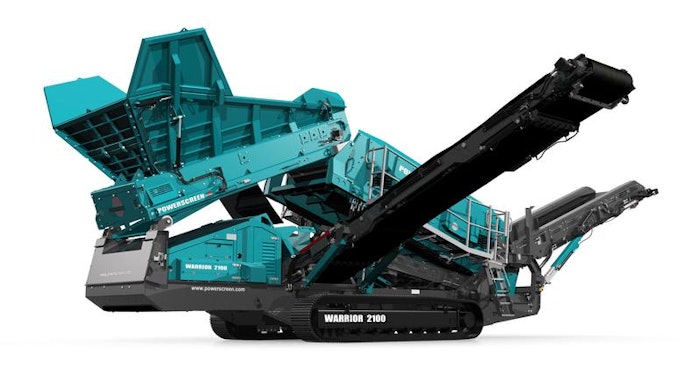

The Warrior 2100 is engineered to include Triple Shaft technology which is unique to Powerscreen heavy duty mobile screens. The triple shaft design ensures that the 16′ x 5′ screen box is highly efficient while maintaining exceptional throughput productivity. The extreme screening acceleration offers the Warrior 2100 improved capabilities over its class rivals, especially in sticky scalping applications. Whilst the Warrior 2100 sits within the same transport envelope as other machines in the 16′ x 5′ class, it has been proven to considerably outperform any conventional single shaft 16′ x 5′ screen.
Smart Design
A lower engine running speed of 1800rpm and advanced hydraulics result in reduced fuel consumption. Optional on-board Envirotrak systems provide further energy saving technologies like Dual Power and Fuel-Save mode. A variety of media solutions mean that the Warrior 2100 is extremely efficient in scalping, screening and recycling applications. It can also process mixed demolition waste including grass, soil, concrete, wood and asphalt.
Output Potential: up to 700 tph (772 US tph)
Heavy duty, 2 deck screen box featuring Triple Shaft technology with adjustable screen timing, amplitude and frequency
Rigid one-piece hopper for optimum material flow
Low engine running speed to improve fuel consumption
Heavy duty, incline belt feeder
Jack up screen facility to aid mesh changes
Screen walkway and access steps
Hydraulic folding conveyors with excellent stockpiling capacity
Rapid set-up and shutdown time
Two speed tracks
Side conveyors can be switched
Without additional parts to allow different discharge side
Collection conveyor raise feature for enhanced serviceability
