1000 Maxtrak
1000 Maxtrak Brochure
Rent Now
Output Potential: 230tph
Transport Dimensions: Width: 9'2" Length: 47'11" Height: 11'4"
Working Dimensions: Width: 11'4" Length: 47'11" Height: 13'5"
Weight: 70,151lbs

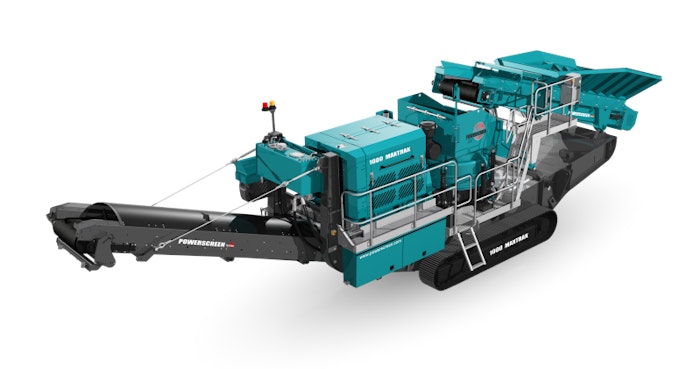

The high performance Powerscreen® 1000 Maxtrak portable rock crusher has been designed for direct feed applications without pre-screening on clean rock. At its heart is the Automax® cone crusher which provides an excellent reduction and product cubicity for the production of high quality aggregate and sub-base material. Hydraulic release capabilities ensure that any un-crushable material entering the chamber is safely discharged.
- Output Potential: up to 230 tph (253 US tph)
- Renowned Automax® crusher technology
- Accepts clean all in feed
- Excellent product shape
- High reduction ratio
- Cone feed box level control to maintain choke feeding
- Hydraulic crusher setting
- Cone overload protection
- Heavy duty chassis and track frame
- Metal detector
- Dust suppression system
- Economical to operate with a highly fuel efficient direct drive system
- Fitted with Powerscreen Pulse Telematics system
- Concaves: extra coarse, medium coarse, coarse, Autosand®
- Short throw eccentric
- Feed hopper extension plates
- Product conveyor belt weigher
- Electric refuelling pump
- Hydraulic water pump
- Radio remote control
- Urea refuelling pump
