Telson 15-58

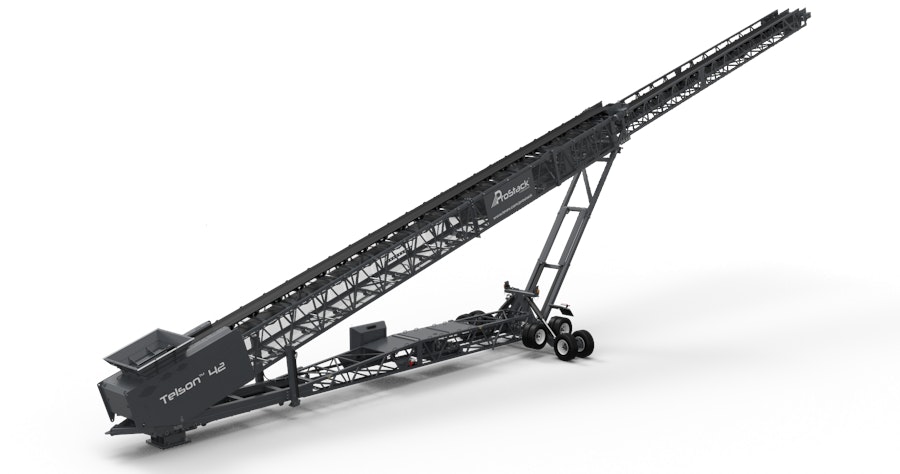

Prostack Telson 42 Road Wheels 2
ProStack Product Overview Brochure
indig Prostack Telescopic Conveyor Range
Rent Now

Conveyor Length: 189' 9"

Belt Width: 42"

Capacity: 262,287 ton

Stockpile Height: 59’ 4”

Stockpile Capacity: 194,287 CU.YD

Prostacks Telson 15-58 Telescopic Stockpiling Conveyor offers the highest stockpile capacity of ProStack's Telescopic Conveyors. It has a working length of 57.8 metres and can be tailored to meet any customer's needs. With a transport length of 38.4 metres the Telson 15-58 is a highly portable conveyor. Capable of 270° of radial movement and a max working angle of 19.5°, this mobile telescopic conveyor is suited to jobs that require a high level of bulk material management. With a stockpile height of 18.08 metres and maximum stockpile capacity of 237,943 tonnes the Telson 15-58 mobile telescopic conveyor provides a heavy-duty solution to bulk material handling.
  • Stinger Drive
  • Swing Axle Undercarriage
  • Folding Axle
  • Hydraulic Wheel Drives
  • Deployment Engine
  • On Board Hydraulic Powerpack
  • PLC Controller

Prostacks Telson 15-58 Telescopic Stockpiling Conveyor offers the highest stockpile capacity of ProStack's Telescopic Conveyors. It has a working length of 57.8 metres and can be tailored to meet any customer's needs. With a transport length of 38.4 metres the Telson 15-58 is a highly portable conveyor.

Gallery

Telson 15 58 Telescopic Stockpiling Conveyor Prostack Min Length 3 Telson 15 58 Telescopic Stockpiling Conveyor Prostack Render 2 Telson 15 58 Telescopic Stockpiling Conveyor Prostack Max Angle 2 Telson 15 58 Telescopic Stockpiling Conveyor Prostack Max Length 3 Telson 15 58 Telescopic Stockpiling Conveyor Prostack Max Length 2 Telson 15 58 Telescopic Stockpiling Conveyor Prostack Min Length 2 Telson 15 58 Telescopic Stockpiling Conveyor Prostack Render Telson 15 58 Telescopic Stockpiling Conveyor Prostack Max Angle Telson 15 58 Telescopic Stockpiling Conveyor Prostack Max Length Telson 15 58 Telescopic Stockpiling Conveyor Prostack Min Length
