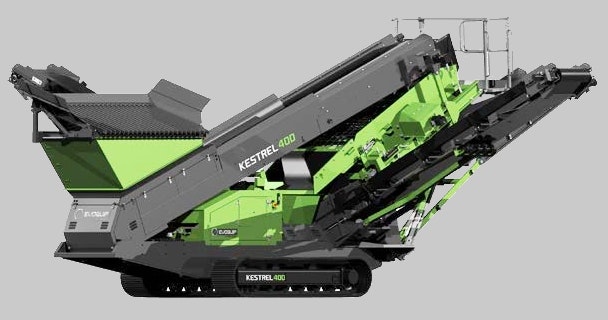

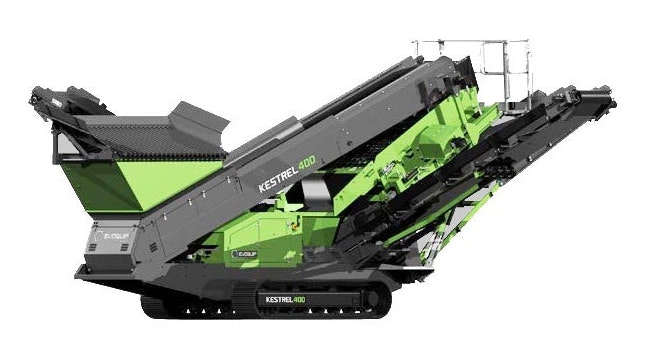

KESTREL 400

FEEDER

  • 4,3 (5.2yd3) Hopper capacity (with grid)
  • 102mm (4″) Grid Aperture as standard; 152mm (6″) optional

SCREEN

  • 2.44m x 1.22m (8’x4′) Double deck screen
  • Hydraulic screen angle adjustment (25-35 degrees)
  • End tensioned as standard

POWER UNIT

  • Tier 3: DEUTZ 2011 49.4kW/66Hp @2300rpm
  • Tier 4: CAT C3 engine (55kW / 74 hp @2300rpm)

OUTPUT POTENTIAL

  • Up to 200tph / 220 US tph

CONVEYORS

  • 800mm (32″) Variable speed product conveyor with twin drive as standard
  • 1050mm Wide fines conveyor with discharge of 3.18m (10’5″) on the tracked variant; 3.43m (11’3″) on the wheeled variant
  • 650mm (26″) Wide midgrade and oversized conveyors with discharge of 3.44m (11’3″) on tracked variant; 3.64m (11’11”) on wheeled variant

TRANSPORT

  • Track (with Grid): L 10.3m (33’10”) W 2.63m (8’8″) H 3.4m (11’2″)
  • Wheeled (with Grid): L10.35m (34′) W 2.75m (9′) H 3.84m (12’7″)
  • Weight (track with grid): 13,020kgs (28,704lbs)
  • Weight (wheeled with grid): 11,280kgs (24,868lbs)
  • High capacity up to 200 tph (depending on feed size, mesh size & material type)
  • Maximum feed size 150mm
  • Engine protection shutdown system
  • Powerunit featuring a transverse engine arrangement to aid access & serviceability
  • Heavy duty single shaft incline screenbox with adjustable stroke, angle & speed
  • Hydraulic screen tensioning (optional)
  • Screen mesh access system for quicker mesh changes
  • Maximum mobility with heavy duty, low ground pressure crawler tracks
  • Removable heavy duty pendant remote control system
  • Quick set up time
  • High performance hydraulic system – cast iron pumps & motors complete with hydraulic cooler
  • Hydraulically folding conveyors for transport
  • Fines conveyor drop down facility to aid bottom deck mesh access
