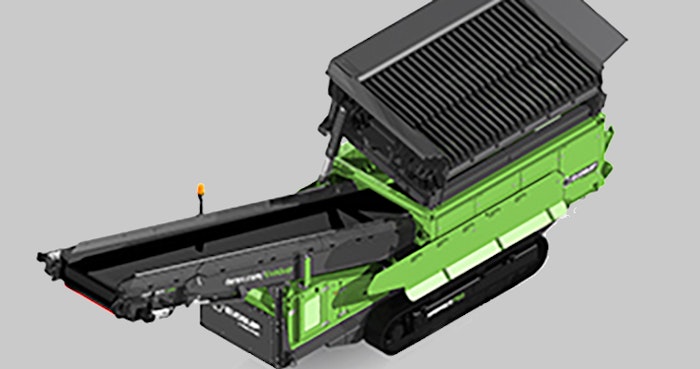

HARRIER 750

Rent Now

Double Deck Screen: 4.5m x 2.6m (14’8″ x 8’7″) Double screen

Standard Grid Opening: 150mm (6″); 100mm (4″) is optional

Bottom Deck Mesh: 60mm (2.4″)

Tier 3: DEUTZ D914 53kW/74Hp @ 2300rpm

Tier 4: CAT C3.4 engine (55kW/74Hp @1800rpm)

Output Potential: Up to 600tph / 660 US tph

Conveyor: 1200mm (48″) Wide product conveyor with discharge height 3.4m (11’2″)

Track unit: L 9.43m (31′) W 2.82m (9’3″) H 3.2m (10’6″)

Weight (standard machine): 19000kgs (19mT)
  • Split level cassettes as standard
  • Standard grid opening – 150mm (6″); 100mm (4″) is optional
  • Standard bottom deck mesh
  • Wide product conveyor
  • Simple to operate
  • Hydraulically folding for transport
  • Twin drive as standard
