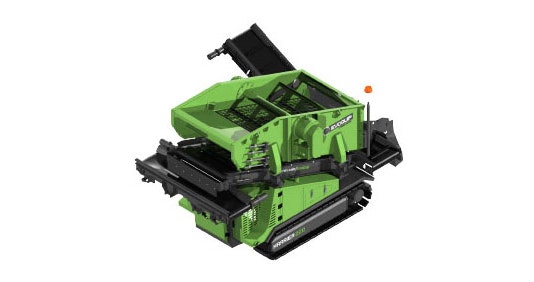

HARRIER 220

Screen:

• 2.1m x 1m (6’9″ x 3’6″) Double deck screen
• 0.6 x 1.1m (2″ x 3’6″) Feed in area
• End tensioned as standard

Powerunit: Isuzu engine (21kW / 28.5Hp)

Output Potential: Up to 88.2 tn

Conveyors:

• 1000mm (40″) Wide collection conveyor with 1.93m (6’4″) discharge
• 400mm (16”) Wide fines conveyor with 1.87m (6’2”) discharge
• 400mm (16”) Wide midgrade conveyor with 1.1m (3’7”) discharge
• 500mm (20″) Wide midgrade conveyor with 1.175m (3’10”) discharge

Track unit: L 3.7m (12’2”) W 1.58m (5’2”) H 2.21m (7’3”)

Weight: 3,300kgs (7,275lbs)
