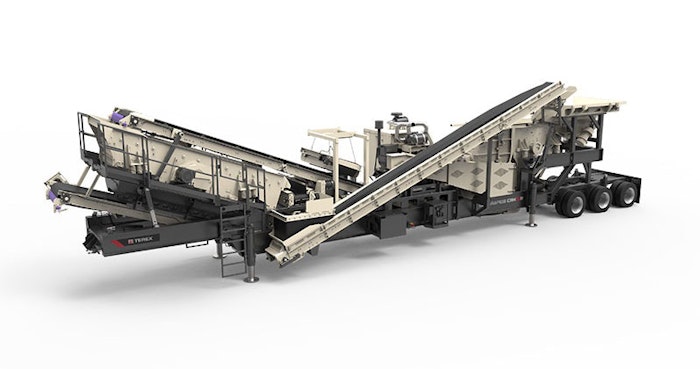

CRH1111R Closed Circuit Impactor/ Screen Plant
Rent Now
Output Potential:
Transport Dimensions: 69'x11'10"x13'5" (LxWxH)
Working Dimensions: 68'10"x18'11"x16'6" (LxWxH)
Weight: 94,006 lbs
The CRH1111R portable closed-circuit impactor/screen plant features the TI4143 impact crusher and a 5x16 2-deck inclined screen. The crusher is a hydraulic
clutch driven direct from a 350hp Scania diesel. All
other components are electrically driven from the 150kw generator. With its large screen, wide conveyors, and low maintenance electric driven components, this is a highly productive, high-value plant.
- TI4143 impact crusher
- 5x16 2-deck screen
- 350HP T4 Scania Diesel with hydraulic clutch crusher/ generator drive
- 150kw generator
- 42.5” x 14.3’ vibrating grizzly feeder with 7’ stepped 2-deck grizzly
- 24” reversible conveyors can feed both screen decks to return conveyor
- Gas powered hydraulic leveling jacks & screen lift
- Removable CCM automatic switchgear panel
- Travel: 11’-10” wide, 13’-5” tall, 3-axle suspension
- Off-plant starters & radio remote
- Screen side platforms & ladder
- Dual pinned hydraulic run-on jacks
- Economical self-cleaning cross belt permanent magnet, mid plant
- Folding grizzly reject conveyor with 10’ discharge
- Under crusher pan feeder
- Various grizzly options for bar spacing, punch plate, & 2nd deck wire (requires optional grizzly reject conveyor)
- Pan feeder/pre-screen in place of vibrating grizzly feeder
- All electric (no diesel)
