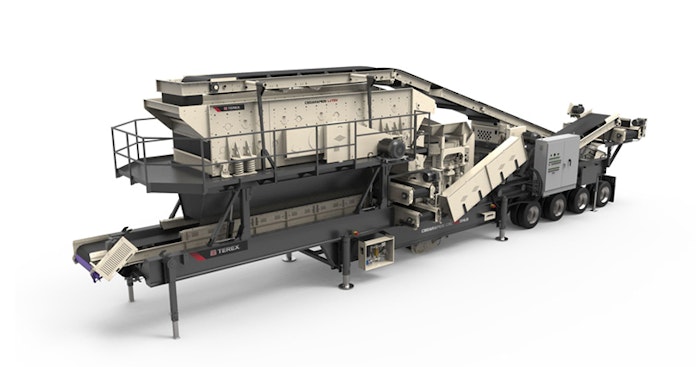

CRC380XHLS Cone / ScreenPlant
Rent Now
Output Potential: 450-500 tph
Transport Dimensions: 70'3"x11'11"x13'11" (LxWxH)
Working Dimensions: 69'10"x11'11"x19'3" (LxWxH)
Weight: 138,300 lbs
The CRC380XHLS plant is unmatched in productivity. Not only does this plant combine the high production MVP380X cone and the LJ-TSV6203 screen components but is unique in the industry with its High Lift Screen (HLS) and integrated flow buffering features. With these features, operators can take advantage of the cone’s and screen’s capabilities without needing to throttle back the feed for surges.
- High efficiency MVP380X 300 hp (224 kW) cone crusher with ElJay® Rollercone® roller bearing construction
- Low profile 90° cone mounting combined with pivot drive adjustment maximizes drive performance and life
- LJ-TSV6203 triple shaft high g-force 3-deck screen
- Patent pending High Lift Screen (HLS) system maximizes cone production and provides easy cone manganese access without removing screen discharge chute
- Multi-position screen platform (operation, maintenance, travel) around three sides of screen; platform access provided by a fixed incline ladder with handrails
- Oversize, quick-release cone surge hopper and overflow chute buffers feed variations
- Drop style main frame for easy cone access and high performance belt drive
- 42” (1067 mm) wide, 25 hp (18.6 kW) wrap drive, main feed conveyor
- 42” (1067 mm) wide, 10 hp (7.5 kW) straight-line undercrusher conveyor with hydraulic lowered tail section
- 42” (1067 mm) wide, 7.5 hp (5.6 kW) underscreen fines conveyor with primary style belt wiper
- Two 30” (762 mm) wide, 7.5 hp (5.6 kW) reversible cross conveyors discharge 41” (1041 mm) beyond frame
- All conveyor belts are 3-ply with vulcanized belt splices
- Unique blending gate system allows combining center deck with bottom deck AND bottom deck with center deck in 25% increments
- 36” (914 mm) wide, 7.5 hp (5.6 kW) reversible closed circuit transfer conveyor
- Quad axle suspension
- On-board gas powered hydraulics to run screen support, jacks and undercrusher tail drop
- Hydraulic leveling jacks with front and rear support legs
- Numerous maintenance and safety features: swing forward screen; no-fastener hopper removal; overhead conveyor crane port; hydraulic lowered undercrusher conveyor; ratchet cone drive adjustment; grease banks; easy access cone lube; multi-position screen platform (operation, maintenance, travel); incline ladder with handrail; 3-ply conveyor belts with vulcanized splices; cartridge cross belt flashing
- Side mounted lockable storage box
- 4 axle configuration and 3+1 axle option provide portability in most any location
- Removable electrical switchgear panel with push button controls or remote with 150’ (45 m) tether
- 3+1 axle configuration (triple with pivot tag axle)
- 12V, 24V hydraulic units
- Dust suppression system
- Heavy-duty hydraulic run-on jacks
- Feed conveyor skirtboard extensions
- Extra off plant motor starters and controls (with panel option)
- Power cable and quick disconnects
- Self-cleaning, twin pole feed conveyor magnet Unique blending gate system allows combining center deck with bottom deck AND bottom deck with center deck in 25% increments
