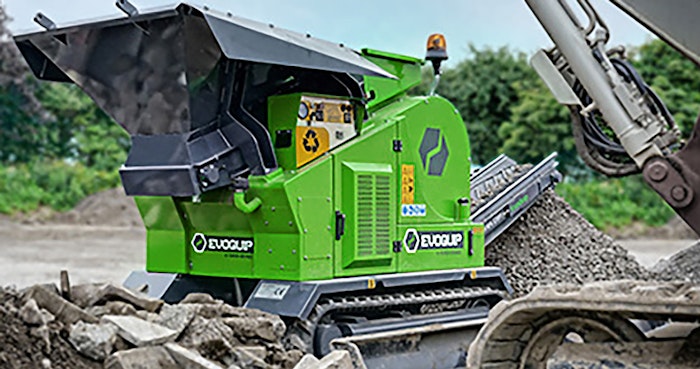

BISON 35

Hopper / Feeder: Belt Feeder as standard. Variable speed

JAW Crusher: 480mm x 250mm (19″ x 10″) Jaw Inlet

CSS Range: 15mm to 80mm (5/8″ to 3-1/4″) Hydraulic Jaw adjustment

Power Unit: 21kW / 28.5 Hp Isuzu Engine Direct drive

Output Potential: Up to 30tph / 34 US tph

Conveyors: 400MM (16″) wide product conveyor. Product conveyor discharge height: 1100mm (3’4″)

General: Available in both rubber tracked and wheeled versions. Remote control as standard

Transport: Track Unit: L 4.5m (14’7″) W 1.5m (4’11”) H 2.05m (6’9″) Wheeled Unit: L 5.25m (17’2″) W 1.45m (4’9″) H 2.2m (7’3″)

Weight: 34,00kgs (7,496lbs)
