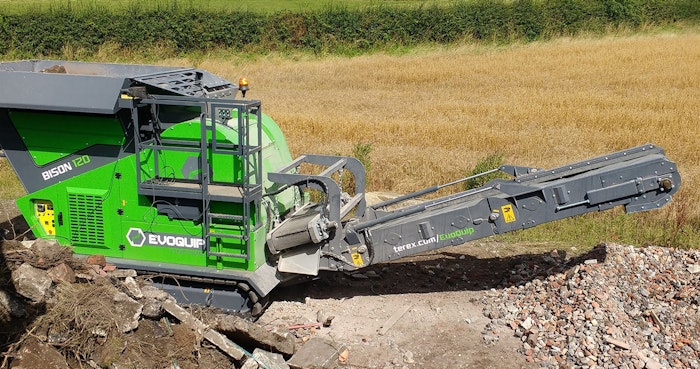

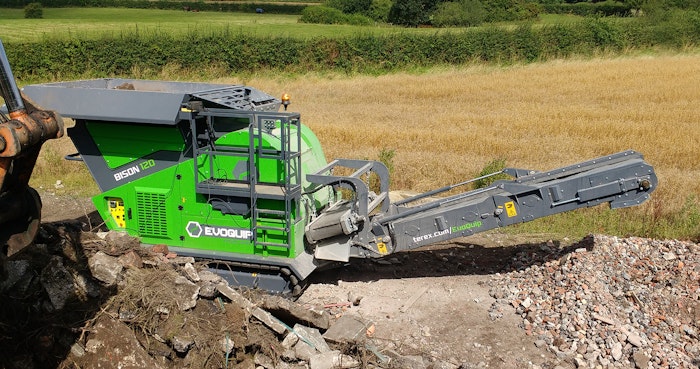

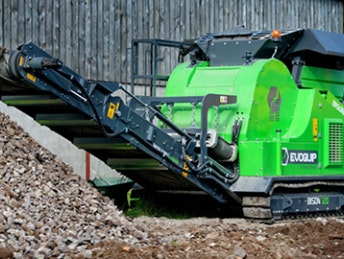

BISON 120
Hopper / Feeder:
- 2.3m3 (3yd3) Hopper capacity;
- Grizzly feeder as standard;
- 30mm (1-1/4″) Nominal spacing grizzly
JAW Crusher:
- 680mm x 400mm (27″ x 16″) Jaw Inlet;
- CSS Range: 20mm to 80mm (3/4″ to 3-1/4″);
- Hydraulic Jaw adjustment.
Power Unit:
- Tier 3: 61kW / 83Hp engine;
- Stage IIIB 52kW/70Hp Isuzu engine;
- Hydraulic drive of crusher
Output Potential:
Up to 80tph / 90 US tph
Conveyors:
- 800mm (32″) Wide product conveyor;
- Product conveyor discharge height: 1.9m (6’2″);
- Hydraulic folding as standard for transport
General:
Jaw level sensor as standard and remote control as standard
Transport: Track unit: L 5.58m (18’4″) W 2.28m (7’6″) H 2.74m (9′)
Weight: 12,000kgs (26,455lbs)
- Compact size for versatility, maneuverability and ease of transport
- Quick set-up time typically under 15 minutes
- Hydraulically adjustable jaw setting
- Adjustable via remote control
- Reverse jaw function for sticky applications / clearing blockage
- Chamber level sensor
- Direct drive crusher
- Fuel efficient 70hp engine
- Track machine
- Low transport costs
