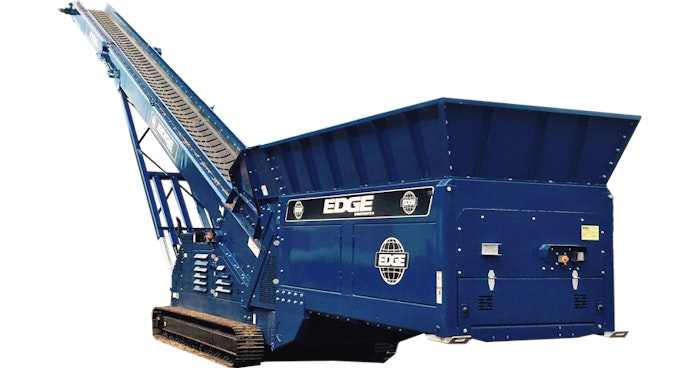

Edge FTS7548MM

  • WEIGHT22.4 TONNES (24.4UST)
  • TRANSPORT WIDTH 2.55M (8'6")
  • TRANSPORT LENGTH 16.8M (55'1")
  • TRANSPORT HEIGHT 3.4M (11')
  • WORKING WIDTH 2.55M (8'6")
  • WORKING LENGTH 21.95M (72')
  • WORKING HEIGHT 9.4M (30'9")


2.55M (8'6")

16.8M (55'1")

3.4M (11')

2.55M (8'6")

21.95M (72')

9.4M (30'9")

  • Forward/ reverse auger flips and rotates material allowing it separate, aerate and untangle
  • Wide, variable high speed feeder conveyor enables and even spread of material
  • Hopper specifically designed to combat bridging tendencies of low dense, bulky materials
  • 25% additional buffer capacity than the standard EDGE FTS units
  • Can receive loads directly form Loader, Crusher, Screener or Grinder
  • Eliminates the need for a separate feeder and stockpiler units
  • Can reduce fuel, maintenance and labor costs by up to 80%
  • Designed for quick and easy transportation via low-loader
  • Discharge conveyor lengths from 20-23m
  • Chassis format; Track or 360 Unlimited
  • Power-source options: Diesel / Hydraulic, Diesel Genset, Dual Power
  • Over-band magnet
  • Remote stop / start feeder
  • Complete remote functionality
  • Remote tracking
  • Rubber or steel plate tracks
  • Fold down head sections for barge / train wagon loading
  • Various hopper liners
  • Hopper extensions
  • Full, ½ and quarter length rubber conveyor skirting available
  • Various belt types and plys available
  • Variable speed discharge conveyor
