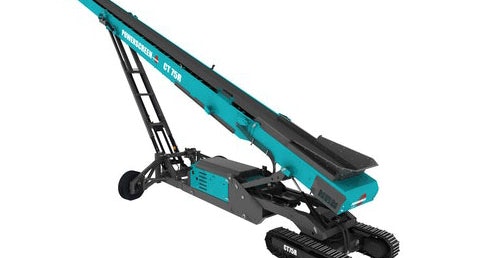

CT75R

Weight (Est.): 19,500kgs (42,990lbs)

Transport width: 2.25m (7'5")

Transport length: 15.6m (51'3")

Transport height: 3m (9'9")

Containerised shipping: 40' x 9'6" High Cube Container

Conveyor length: 20m (65' 7")
Belt width:1050mm (45")
Discharge height: 8.7m (28'6") @ 24°
Max discharge height: 10m (32'10") @28°
Production capacity: Up to 400tph (441 US tph)

  • Self powered diesel hydraulic tracked conveyor
  • Full hydraulic set-up, no crane required
  • Containerised, track in/track out
  • Feed boot liners: AR 400 plate or 20mm rubber
  • Feed boot extension
  • Chevron belt
  • Blade scraper
  • Head drum guards
  • Under guards
  • Dust covers
  • Dust suppression water spray at head drum
  • Conveyor drive - direct electric
  • Full length skirting
