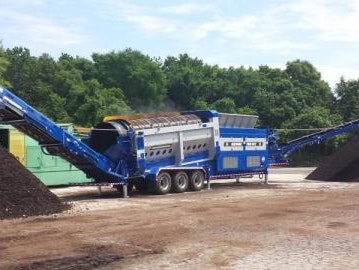

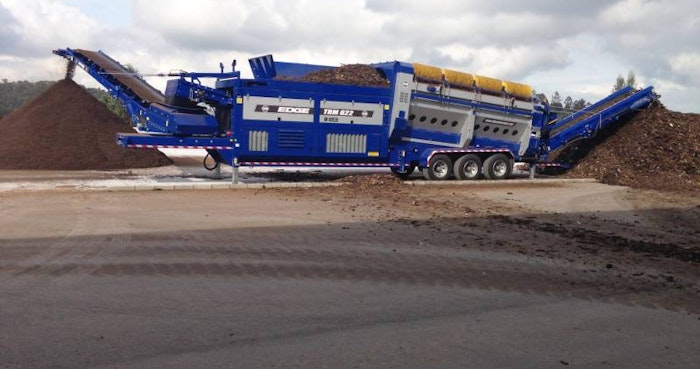

2018 Edge 622 Wheel Trommel


Mobility: Wheel
Engine: CAT 4.4 Tier 3 NO DEF
Year MFG: 2018
Condition: Excellent
Certified: yes
Hours: 2000
Hopper
Width 1800m (5’10”)
Length 3600mm (11’9”)
Capacity 2m³ (STD) 2.6yrd³
5m³ (Extended) 6.5yrd³
Feed Conveyor
Belt width 900mm (36”)
Belt Speed Varible Speed
Collection Conveyor Belt width 1200mm (48”)
*Discharge Height 3.5m (11’6”)
Oversize conveyor
Belt width 900mm (36”)
Discharge Height 3.2m (10’7”)
fINES CONVEYOR
Belt width 900mm (36”)
Discharge Height 5.3m (17’6”)
Drum (Barrel)
Diameter 1544mm (5’)
Length 4917mm (16’)
Drum Angle 5°
Screening Area 18.6m² (22.2 yards²)
- TYPE: Heavy Duty Wheel Trommel
- SCREEN SIZE: 6 x 22
- BELT SIZE: Various
